Fort Randolph on the Atlantic Side of the Panama Canal
(With the 14-inch M1920 railway gun dismount site)
As the Panama Canal took shape between 1904 and 1914, the U.S. government recognized the imperative to protect this vital maritime asset. Defense planning unfolded concurrently and in tandem with canal construction, reflecting the canal's geopolitical significance. with the construction of the Panama Canal, its defenses were planned and work started on the building of fortifications. Before starting the construction, the Army conducted an exhaustive study, including the sending of a survey team in 1910 to examine possible defense sites.
Strategic Defense Planning for the Panama Canal: A Collaborative Military Endeavor
An order signed by the Secretary of War on 10 October 1909 appointed a Joint Army-Navy Fortification Board which would visit the Isthmus of Panama for the purpose of drawing up plans for the defense of the canal. The board conducted an on-the-ground survey during the period 17 March to 2 April 1910.
The final recommendations of the defense planners contemplated a two-part defense consisting of a number of strongly constructed and heavily armed positions at the canal entrances on both the Atlantic and Pacific Oceans, with field works established in the vicinity of locks and other vital installations to provide for defense against invaders who might succeed in making a landing. One of these was Fort Randolph on the Atlantic side which deployed two 14-inch M1920 railway guns.
The Panama Canal’s defenses were not merely an afterthought but a cornerstone of its conception, reflecting early 20th-century military ingenuity and the strategic foresight of a rising global power. Key initiatives included:
1. Joint Army-Navy Fortification Board (1909)
Established by Secretary of War Jacob M. Dickinson on October 10, 1909, this board was tasked with crafting a defense strategy. Comprising military engineers and strategists, it conducted an on-site survey from March 17 to April 2, 1910, evaluating vulnerabilities and potential attack vectors.
2. Two-Pronged Defense Strategy
Coastal Fortifications: Heavy artillery emplacements at both Atlantic (Caribbean) and Pacific entrances to deter naval assaults. Notable examples included Fort Randolph (Atlantic) and Fort Grant (Pacific), equipped with long-range guns. Fort Randolph was to be built for defending the northern end of the Panama Canal in conjunction with Fort Sherman.
Inland Field Works: Mobile infantry and artillery units positioned near critical infrastructure, such as the Miraflores and Gatun Locks, to repel ground invasions.
3. Innovative Artillery Solutions
14-inch M1920 Railway Guns: Deployed at Fort Randolph in the 1920s, these mobile behemoths could traverse the isthmus via rail, shifting between coasts to counter emerging threats. Their 48,000-yard range (27 miles) doubled that of fixed batteries, offering unmatched flexibility.
Fixed Coastal Batteries: Massive 12-inch and 14-inch guns on disappearing carriages were installed at strategic points, including Naos and Flamenco Islands, blending firepower with concealment.
4. Timeline and Evolution
Initial fortifications began during canal construction, with major complexes like Fort Randolf and Fort Amador completed by 1917.
Post-WWI upgrades, such as the 1920s railway guns, addressed evolving military technology and global tensions.
5. Joint Army-Navy Collaboration
The seamless integration of Army and Navy insights ensured a robust defense network, safeguarding the canal through both World Wars. This foresight underscored the canal’s role as a linchpin of global trade and military strategy, with defenses adapting to meet changing threats over decades.
Fort Randolph: The Atlantic Sentinel of the Panama Canal
Perched on the rugged shores of Margarita Island—a narrow-necked peninsula northeast of Colón—Fort Randolph stood as a linchpin of the Panama Canal’s Atlantic defenses.
Fort Randolph, named in honor of Major General Wallace F. Randolph, was established in 1911 to guard the canal’s Caribbean entrance with a lethal mix of firepower and ingenuity, evolving through two World Wars before fading into obscurity. Located on Margarita Island—a peninsula extending northeast from the mainland near Colón—the fort stood strategically along the eastern breakwater protecting Limón Bay. Though called an "island," Margarita and nearby Galeta were actually narrow peninsulas. Fort Randolph faced Fort Sherman directly across the bay, creating a powerful defensive barrier for the canal's Caribbean side.
From Mudflats to Military Stronghold (1911–1940)
When the War Department officially named the site "Fort Amador" in 1911, the term failed to catch on immediately, with the area popularly continuing to be called "Fort Grant" for several years afterward. Initially, the Army's naming practices for fortifications along the Panama Canal were informal and loosely defined, leading to ambiguity and widespread use of both names.
Strategic Location: Despite its label as an “island,” Margarita was a peninsula, connected to the mainland by a railway causeway. This allowed Fort Randolph to anchor the eastern breakwater of Limón Bay, facing its counterpart, Fort Sherman, across the water.
Expansion Eras:
1911: Established as part of the original Coast Artillery Corps network.
1933 & 1940: Expanded to house coastal artillery crews, barracks, and support facilities as global tensions rose.
Building the Limón Bay Breakwater: A Monumental Challenge
Construction on the Limón Bay breakwater began with preliminary work in 1913. The first steps involved establishing vital rail connections: a link from Coco Solo Point to the Margarita Island railroad, new sidings and auxiliary tracks at Coco Solo, and a wye junction on Margarita Island itself. Crews repaired and reinforced the existing railroad to Margarita Point, laid ballast, and built new connections to the Panama Railroad through the old Mt. Hope quarry. In total, they installed 5.2 miles of new track.
By early 1914, responsibility shifted from the Isthmian Canal Commission (ICC)—which was being phased out—to the newly created Panama Canal Division of Terminal Construction.
The Quarry Problem: A 50-Mile Solution
Early surveys revealed a major issue: no suitable rock was available near the Atlantic side. The Porto Bello quarry had closed, forcing planners to source rock from the Sosa Hill quarry on the Pacific side, more than 50 miles away. The massive effort required approximately 2,850 trainloads, each consisting of 30-car trains, hauling rock across the Isthmus.
Disaster Strikes and Resilience Prevails
By February 8, 1915, the temporary wooden trestle extending into Limón Bay had reached an impressive length of 9,498 feet. However, that same day, a fierce tropical storm struck from the north, destroying nearly 6,000 feet of the structure by February 10.
Undeterred, workers quickly rebuilt the trestle, reinforcing its strength. Rock was ultimately deposited along 5,290 feet of the breakwater’s outer end, while the connecting railroad line from shore to the start of the breakwater measured 5,693 feet.
Completion of a Monumental Effort
The Limón Bay breakwater was finally completed in mid-1916, after more than 4 million tons of rock had crossed the Panama Isthmus. This massive logistical achievement provided essential protection to the canal’s Atlantic entrance, highlighting both the challenges and triumphs of early 20th-century engineering.
The Guns of Fort Randolph
Fort Randolph’s arsenal read like a catalog of early 20th-century military innovation:
Battery Webb (1912–1948):
Two 14-inch disappearing guns – Massive rifles that could vanish underground after firing, hidden from enemy spotters.
Battery Weed:
Two 6-inch disappearing guns (1912–1946) – Ideal for targeting smaller, faster ships.
Battery Tidball (John C. Tidball) (1912–1943):
Four 12-inch mortars – These high-trajectory weapons rained shells down onto targets.
Battery Zalinsky (1912–1943):
Four 12-inch mortars – These high-trajectory weapons rained shells on distant targets, perfect for disrupting enemy fleets.
The Railway Gun Giants (1928–1946):
Battery 1 - Two 14-inch M1920 railway guns – Mobile titans on rail carriages, capable of shifting positions from the Atlantic coast to the Pacific coast to counter the most likely threats.
155mm Powerhouses (1940- ):
Battery 2C - Four 155mm guns on “Panama mounts” of (improvised concrete platforms for rapid deployment.
Battery 4A – Four 155mm guns on “Panama mounts” of (improvised concrete platforms for rapid deployment.
Battery 5A - Four 155 mm guns
75mm Rapid-Fire Shield Against Invasion (1919- )
Battery AW – Originally 4.7-inch Armstrong naval guns re-purposed for coastal defense, replaced by four 75 mm M1897 field guns. While the M1897 was later modified for anti-aircraft use in some contexts, at Fort Randolph, they were mounted on fixed "Panama mounts" (concrete platforms) for beach defense. This Rapid-fire artillery to repel landing craft or smaller ships, not anti-aircraft fire.
Anti-Aircraft Defenses:

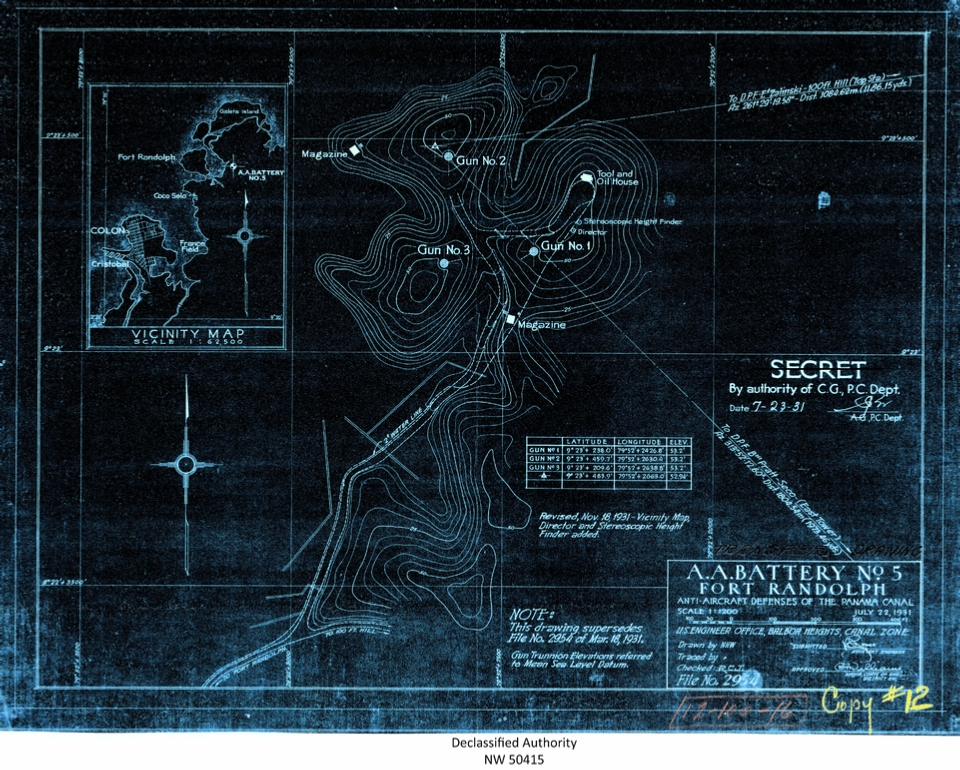

Battery 5 – An anti-aircraft battery with three 3-inch M1918 AA guns on the mainland to the east of Margarita. These were purpose-built flak guns to counter aircraft and swat enemy planes from the sky.

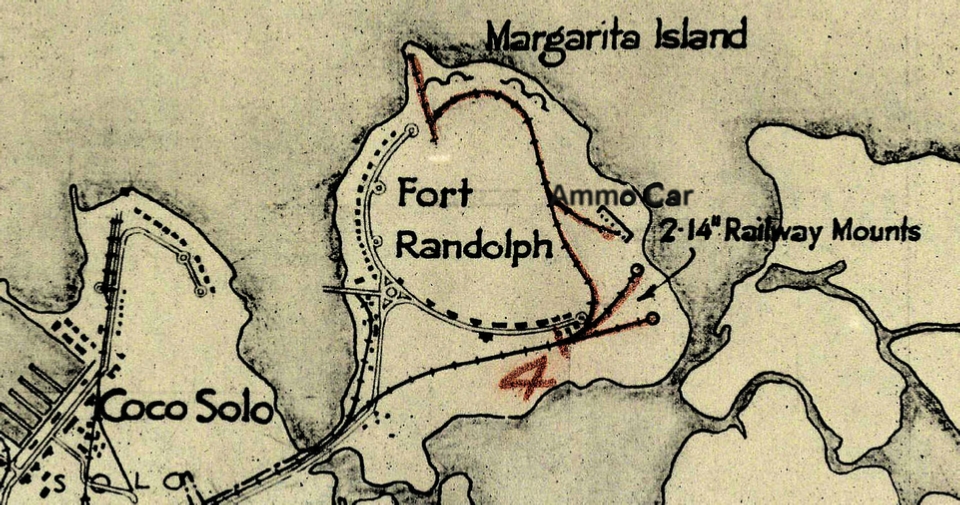

Margarita Island at Fort Randolph detailing two 14-inch railway gun mounts. Notice the siding spur track just above the gun emplacements - to park the M1 Powder Car while firing the gun.
The 14-inch Railway Guns: A Strategic Game-Changer
Fort Randolph Railway Battery No.1
A Deadly Duo of Coastal Defense
At the northeastern tip of Margarita Island, Battery No. 1 housed two of the most formidable weapons in the Panama Canal’s defensive arsenal: the 14-inch M1920 railway guns. These massive, mobile artillery pieces were designed to shuttle between the Atlantic and Pacific sides of the Canal via the Panama Railroad’s 5-foot gauge tracks, ensuring flexibility against naval threats from either ocean.
Dual-Designation System:
At Fort Randolph (Atlantic side): Called Battery No. 1.
At Fort Grant (Pacific side): Re-designated Battery No. 8.
Operational Plan:
Ideally, one gun was stationed on each coast, but they could be rapidly relocated with two guns on either coast if intelligence indicated a concentrated attack.
Engineering & Firepower
Range: 48,000 yards (27 miles)—double the reach of Fort Randolph’s fixed 14-inch batteries. The guns could theoretically shell ships near the horizon, making them a deterrent against even the largest battleships.
Mobility: Mounted on reinforced rail cars, the guns could be fired from their rail mounts, but with no aiming traverse. Dismounting the guns allowed them to fire from prepared positions with turntables for full 360 degree traverse for precise aiming.
Ammunition Handling: "Garage magazines" built into the island stored shells, and overhead trolleys loaded the 1,400-pound projectiles onto the guns.
Service & Decline:
Active Use (1928–1944): Conducted live-fire drills, though never used in combat.
Last fired in 1944 before being placed on standby.
Scrapped (1948): Dismantled as coastal artillery became obsolete post-WWII.
The Site Today
Firing Positions: The concrete pads and rail spurs remain, though overgrown. Little remains beyond crumbling concrete, but the site offers a glimpse into an era when steel, railroads, and sheer firepower defined global defense strategy.
These railway guns were the ultimate insurance policy for the Canal. While fixed batteries like Battery Webb provided static defense, Battery No. 1’s mobility allowed the U.S. to concentrate firepower where it was needed most—a concept that foreshadowed modern rapid-deployment artillery.

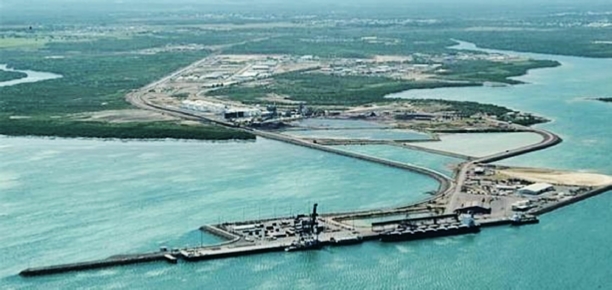

Today, the area once occupied by Batteries Tidball and Zalinsky forms part of the Panama Colón Container Port (PCCP) development. Many of the original military structures remain partially intact, while others lie in ruins.

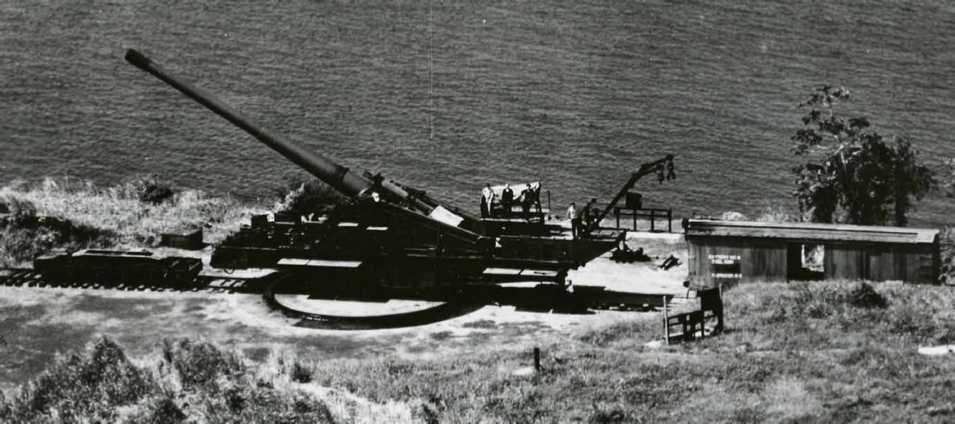

14” Railway gun its dismounted position. Fort Randolph had two positions on the Atlantic side. The gun was brought in by railroad and then dismounted. It could fire either mounted on its railway platform with restricted loads and no traverse for aiming, or from the dismounted position with heavy loads that could be fired up to 47 miles away with 360 degree aiming traverse.
Battery Webb: The Mighty Guns of Fort Randolph

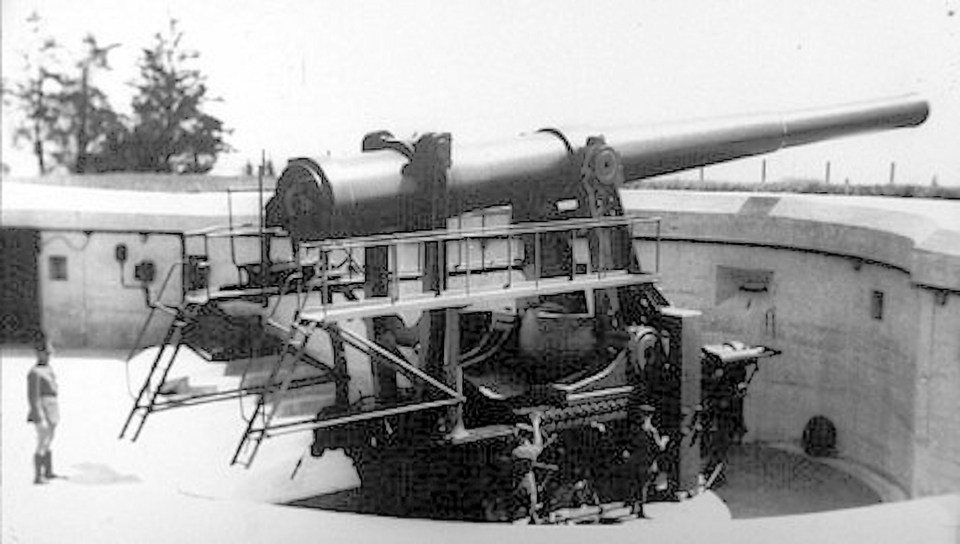

The largest and most powerful fixed emplacement guns at Fort Randolph were housed at Battery Webb, named in honor of Major General Alexander S. Webb. Situated strategically at the northwest corner of Margarita Island, Battery Webb featured two massive 14-inch rifles (Model 1910), mounted on disappearing carriages (DC Model 1907, M I).
These enormous fixed emplacement weapons were half the firepower of the 14-inch mobile railway guns, but boasted a range of 24,000 yards (22 km) and were capable of rotating through a 170-degree arc to cover all the Atlantic approaches to the Panama Canal.
Construction of Battery Webb began in 1912 and finished in December 1915, costing approximately $372,000—a significant sum at the time. From 1916 until 1943, each gun was fired exactly 119 times for practice. Their last shots echoed across Limón Bay on October 23, 1943. Officially removed from active service in 1944, these mighty guns were dismantled and scrapped between 1946 and 1948.
Today, although deserted and stripped of its weaponry, Battery Webb still impresses visitors. From a distance, its massive concrete structure—40 feet high and 400 feet long—remains a formidable reminder of its historic strength.
Battery Weed: Fort Randolph's Precision Guardians
Positioned just southwest of Battery Webb, Battery Weed was a critical component of Fort Randolph’s coastal artillery network. Named after Brig. Gen. Stephen H. Weed (a Civil War artillery officer killed at Gettysburg), this battery was designed to dominate the approaches to Limón Bay, ensuring no enemy ship could threaten the Panama Canal’s Atlantic entrance unchallenged.
Armament & Capabilities
Guns:
Two 6-inch M1908 rifles on M1905MII disappearing carriages, allowing coordinated fire
Performance:
Range: 14,500 yards (13.3 km)
Traverse: 170°—covering the breakwater, bay entrance, and approaches from the north and west

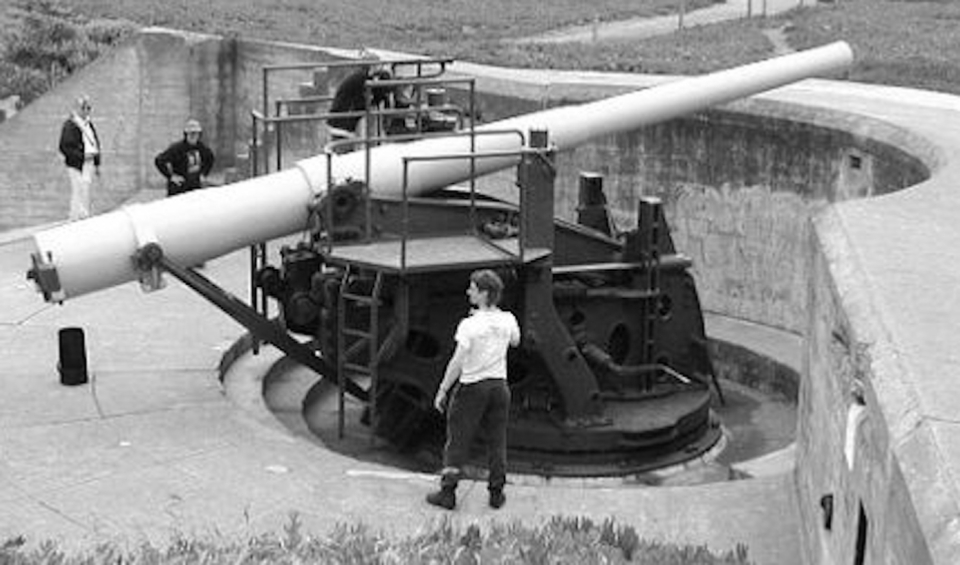

This 6-inch gun M1905 on disappearing carriage M1903 at the Presidio in San Fransisco is extremely close in appearance to the 6-inch rifles (Model 1908) on disappearing carriages (DC Model 1905, M II) at Fort Randolph used by the Weed Battery.
Defending Limón Bay
Construction of Battery Weed began in 1912 and was completed in 1916, costing approximately $129,230 for the concrete structure and gun mounting equipment (excluding the guns themselves). In their operational lifetime,
Gun No. 1 fired 176 practice rounds
Gun No. 2 fired 169 practice rounds
The battery fired its last shots on October 8, 1929, was officially deactivated in 1944, and the guns were finally dismantled and scrapped in 1946.
Post-War Fate & Current State
While overshadowed by Fort Randolph’s massive 14-inch guns, Battery Weed played a vital role in close-in defense, ensuring smaller, faster ships couldn’t slip past the Canal’s outer defenses. Its disappearing carriages—which lowered the guns after firing to protect them—show the ingenuity of pre-WWI fortifications.
1960–1961: Briefly used for special training exercises
Today:
Abandoned but intact—the concrete emplacements remain largely unchanged
Two small sheds (15x30 ft) were added at each gun position, but the battery otherwise looks as it did a century ago
No active military or civilian use—a silent relic of Panama’s defensive past
Now left to decay, it stands as a monument to an era when steel, concrete, and sheer firepower guarded the world’s most strategic waterway. Visiting Today? Though off-limits to the public, the site offers a rare, well-preserved glimpse into early 20th-century military engineering—a time when disappearing guns were the cutting edge of coastal defense.
Batteries Tidball & Zalinsky: The Forgotten Mortar Giants of Fort Randolph
A Deadly Duo of Coastal Defense
Located east and slightly north of Battery Webb were Batteries Tidball and Zalinsky, named respectively after Major General John C. Tidball and Major General Edmund Louis Gray Zalinsky. Each battery featured four powerful 12-inch mortars mounted on Model 1896 (M III) carriages, installed within massive concrete fortifications.
These mortars provided 360-degree coverage and had a formidable firing range of 17,900 yards (16.3 km), capable of striking targets approaching from any direction.
Construction of Batteries Tidball and Zalinsky began in 1912, with both completed by January 1914. Each battery cost approximately $171,365 to build. However, by World War II, their vulnerabilities—especially their inability to defend against aerial attacks—became clear. Both batteries were deemed obsolete and were dismantled and scrapped in 1943.
Today, the area once occupied by Batteries Tidball and Zalinsky forms part of the Panama Colón Container Port (PCCP) development. Many of the original military structures remain partially intact, while others lie in ruins.
The 12-inch mortars on Model 1896, M III mounts at Battery Meigs, Fort Washington, MD shown above are almost identical to the 6-inch rifles (Model 1908) on disappearing carriages (DC Model 1905, M II) used at Fort Randolph in Batteries Tidball and Zalinsky.
Photographs from an album of a soldier stationed at Fort Randolph during the 1930's

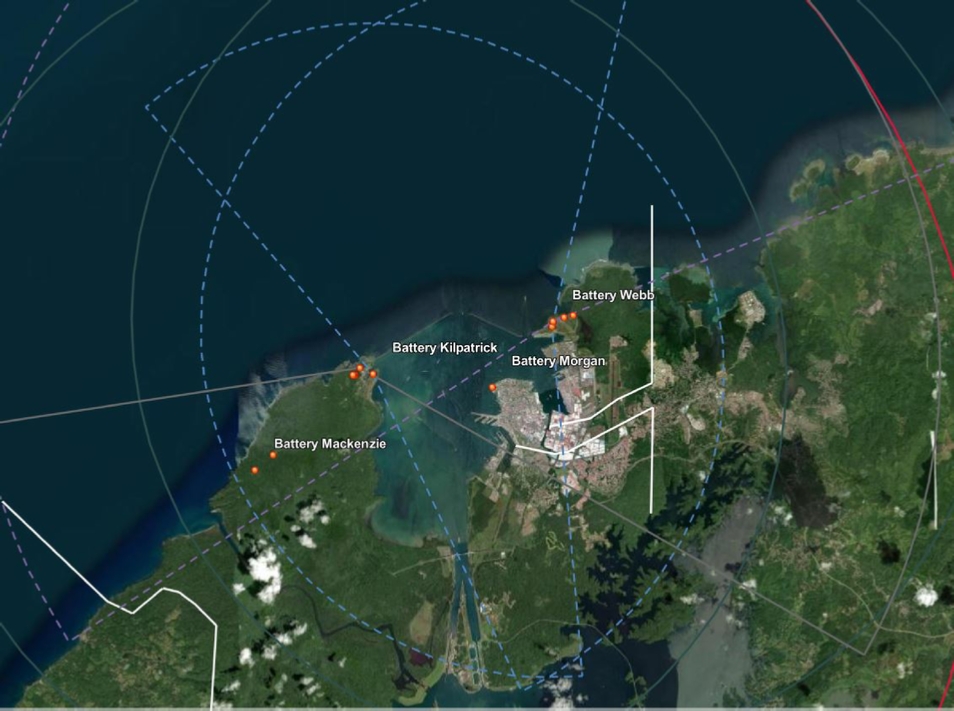

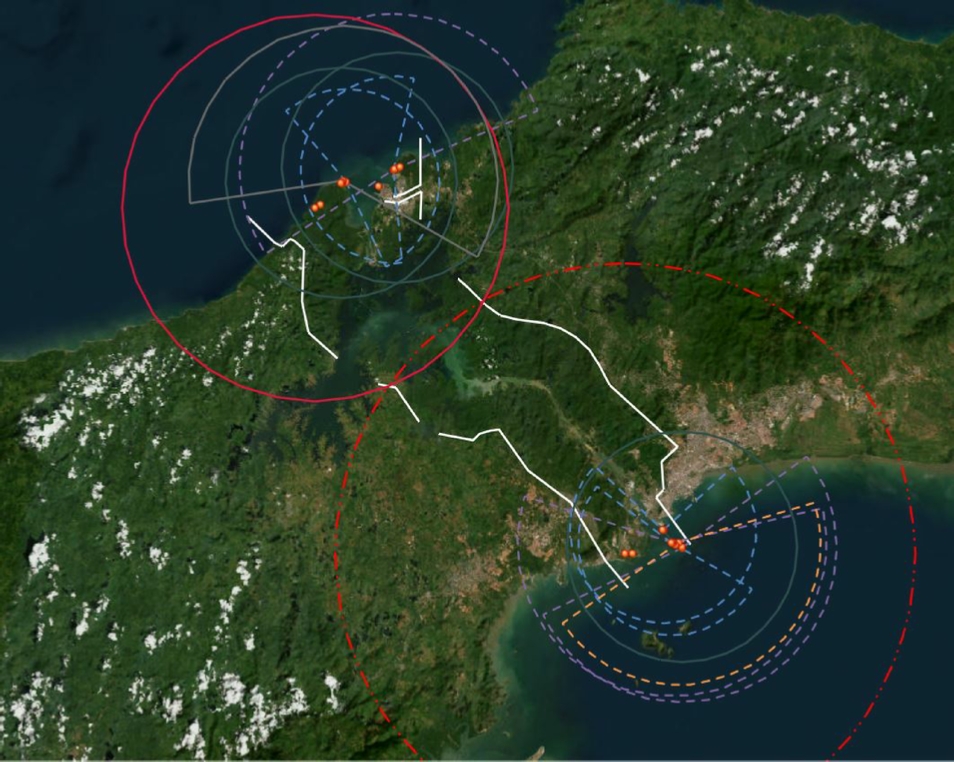

Interlocking Fields of Fire: Fort Randolph’s Layered Coastal Defense System
Fort Randolph was not just a collection of isolated artillery batteries—it was a carefully orchestrated killing zone, where overlapping fields of fire from guns of varying ranges and calibers created an impenetrable gauntlet for any enemy fleet daring to approach the Panama Canal’s Atlantic entrance. From massive 14-inch railway guns to rapid-fire 75mm beach defenses, each weapon had a precise role in a multi-layered defensive strategy designed to annihilate threats before they reached the Canal.
At the heart of Fort Randolph’s defense were its 14-inch artillery pieces, which provided the heaviest and longest-range firepower.
Battery Webb’s Fixed Guns (24,000-yard range):
Positioned to cover the main shipping channels into Limón Bay.
Their disappearing carriages allowed them to fire, then retract, minimizing exposure to counterfire.
Railway Battery No. 1 (48,000-yard range):
The two mobile 14-inch M1920 railway guns could be repositioned anywhere along the Panama Railroad, ensuring no blind spots in the outer defenses.
Their extreme range meant they could engage enemy battleships far out at sea, forcing attackers to either retreat or sail into the kill zones of smaller batteries.
Field of Fire Overlap:
The railway guns could hit targets twice as far as Battery Webb, creating a staggered engagement range.
Enemy ships evading the railway guns would then enter Battery Webb’s lethal envelope.
If an enemy fleet somehow survived the outer barrage, they would face a devastating mid-range assault.
Batteries Tidball & Zalinsky (17,900-yard range):
Armed with eight 12-inch mortars, these batteries excelled at high-angle plunging fire, perfect for striking ships attempting to hide behind coastal terrain.
Their 360° traverse meant they could engage threats from any angle.
Battery Weed (14,500-yard range):
Two 6-inch disappearing guns covered the breakwater and inner bay approaches, ensuring smaller, faster vessels couldn’t slip through.
Field of Fire Overlap:
The mortars and 6-inch guns created a crisscrossing kill zone, with overlapping coverage over Limón Bay’s entrance.
Ships avoiding the mortars’ plunging fire would face Battery Weed’s direct, rapid shots.
75mm Beach Guns (Point-blank): Annihilate any remaining landing forces.
Fail-Safe Design:
If one battery was disabled, others could compensate.
The combination of fixed and mobile guns made the system adaptable to evolving threats.
The Ultimate Defense: A No-Escape Kill Box
Though never tested in combat, Fort Randolph’s interlocking fields of fire represented the pinnacle of early 20th-century military engineering. Its layered approach influenced later WWII coastal defenses, proving that diversity in range, caliber, and mobility was key to protecting strategic assets.
